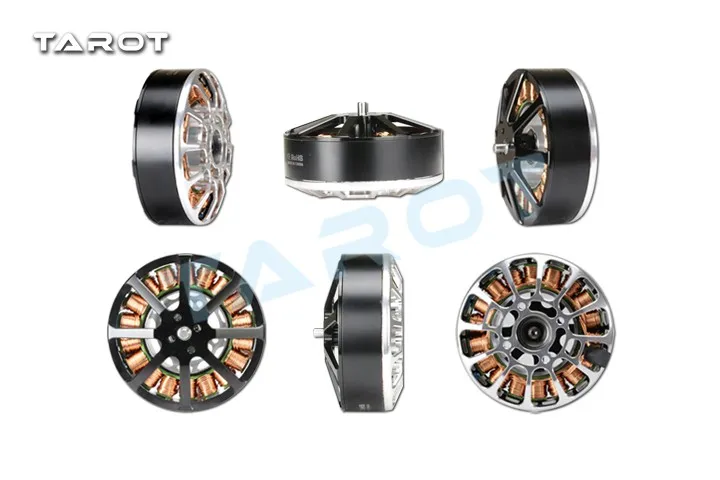

• tarot 6012/260KV multi-axis brushless motor TL60P12

tarot 6012/260KV multi-axis brushless motor TL60P12

( 0 )
  • $100.07
999items available
Contact Us
Buyer Protection
30 Day Returns Guarantee
Full or partial refund if the item is not as described
Full refund for damaged items



Product description:
International standard aviation aluminum raw materials, after Japan's high-precision CNC machining (precision 0.001mm), the use of German imports of tungsten steel tool to ensure processing accuracy, each finished or semi-finished products have to undergo a rigorous quality inspection (0.01mm) Batch consistency. Lightweight, high strength, heat of the 6012 / 260kv new design concept, the rotor using high-precision dynamic balancing instrument debugging to the best (0.05g or less), the use of imported bearings, hand-wound. Each motor is tested dynamically and statically before leaving the factory to ensure the consistency of the motor.
Applications: Suitable for six-rotor, eight-rotor, high-efficiency long voyage (long-range operating unmanned aerial vehicle, heavy-duty UAV).
Motor characteristics: lightweight, high strength, high efficiency, fast heat, tension.

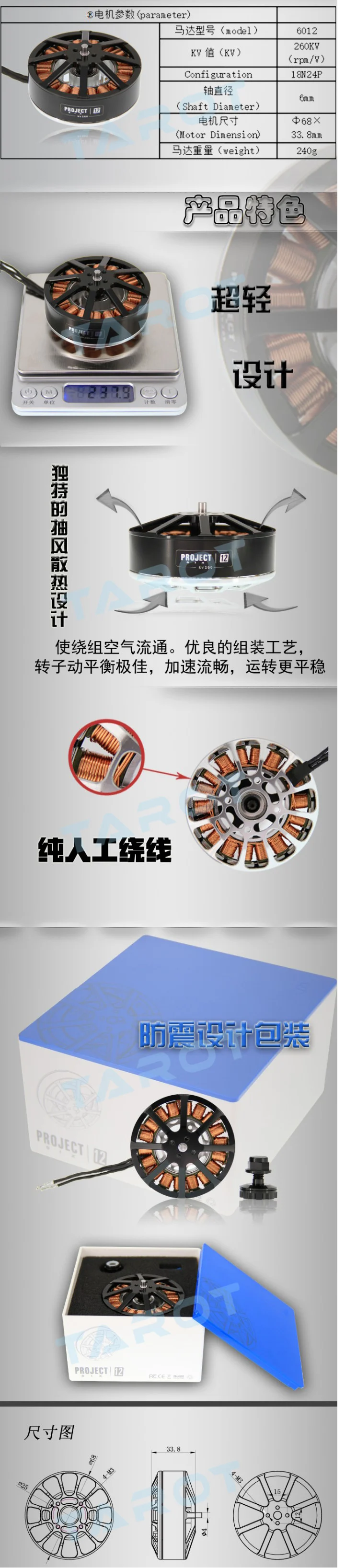

Basic parameters:
 Product Type:6012
 KV: 260
 Number of stator terminals: 18N
 Motor poles: 24P
 Diameter of the shaft: 6 mm
 Motor size: Φ68 × 33.8mm
 Weight: 240g
 No-load current (A) @ 10v: 0.85
 Battery section: 6-12s
 Maximum continuous current (A): 40.62
 Maximum continuous power (W): 863.5
 Internal resistance: 56mΩ
 Motor installation hole distance: Φ25mm
Product Specifications:
    6012 260KV Brushless motor *1
    Metal paddle × 1
    M3 * 6 cup head screw × 2
    M3 * 6 half round head screw × 4
    PC box × 1
