• tarot 6008/285KV multi-axis brushless motor TL60P08

tarot 6008/285KV multi-axis brushless motor TL60P08

( 0 )
  • $95.13
999items available
Contact Us
Buyer Protection
30 Day Returns Guarantee
Full or partial refund if the item is not as described
Full refund for damaged items

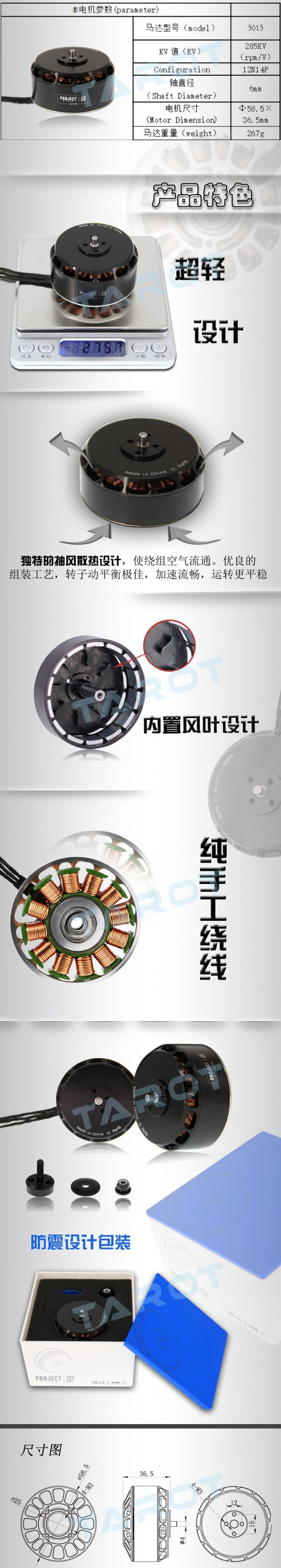

Product description:
International standard aviation aluminum raw materials, after Japan's high-precision CNC machining (precision 0.001mm), the use of German imports of tungsten steel tool to ensure processing accuracy, each finished or semi-finished products have to undergo a rigorous quality inspection (0.01mm) Batch consistency. Lightweight, high strength, heat on the 6008 / 285kv new design concept, the rotor using high-precision dynamic balancing instrument debugging to the best (0.05g or less), the use of imported bearings, full manual winding. Each motor is tested dynamically and statically before leaving the factory to ensure the consistency of the motor.
Range of application: Suitable for six-rotor, eight-rotor, high-efficiency long voyage (long-distance operating unmanned aerial vehicles, heavy-duty UAV).
Motor characteristics: lightweight, high strength, high efficiency, fast heat, tension.
Basic parameters:
Product Type:6008
KV: 285
Number of stator terminals: 18N
Motor poles: 24P
Diameter of the shaft: 6 mm
Motor size: Φ68 × 29.8mm
Weight: 177g
No-load current (A) @ 10v: 1.3
Battery section: 6-12s
Maximum continuous current (A): 29.37
Maximum continuous power (W): 636.7
Internal resistance: 86mΩ
Motor installation hole distance: Φ25mm
Product Specifications:
    6008 / 285kv brushless motor × 1
    Metal paddle × 1
    M3 * 6 cup head screw × 2
    M3 * 6 half round head screw × 4
    PC box × 1
