Tarot 4114/320KV Multi-axis brushless motor / black TL100B08-01

  • Model: TL100B08-01
  • Shipping Weight: 200g
  • Units in Stock: 912

¥252.00





Product Descriptions:
  • 4114/320KV Brushless Motor is designed for multi-copter
  • CNC processed, smooth surface and well-balanced
  • Brand-new turbofan cover, which provide good heat dissipation effect
  • Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.
  • Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.
Specifications:
  • M2.5x6 stepped screw x3
  • 4114¡Ð11KV320x1

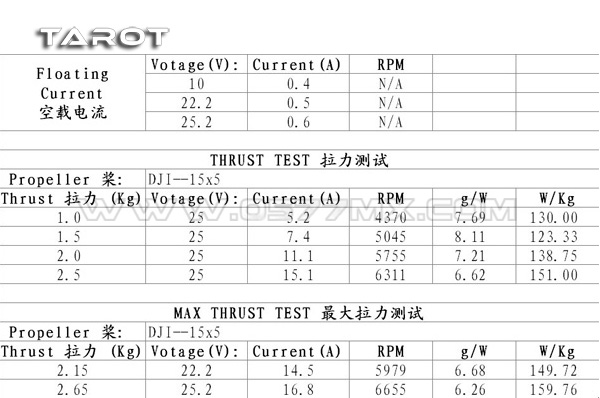

Product parameters:

Motor peripheral diameter: 46.00mm
Stator diameter: 41.0 mm
Stator end thickness: 14.0 mm
Stator end: 24N
Motor number of poles: 22P
Diameter: 0.31mm
Per volt speed: 320 RPM / Volt
Of 22.2V empty annexed current: 0.5 Amps
Motor internal resistance: 126 mΩ
Motor Weight: 148 Grams
Gear shaft mounting diameter: ¢ 4.0 mm
Motor Length: 32.0 mm
Motor shaft total length: 37.0 mm
